Character:
Suitable for handing bulk materials or bags up to 40°, slip resistant and big conveying capacity.

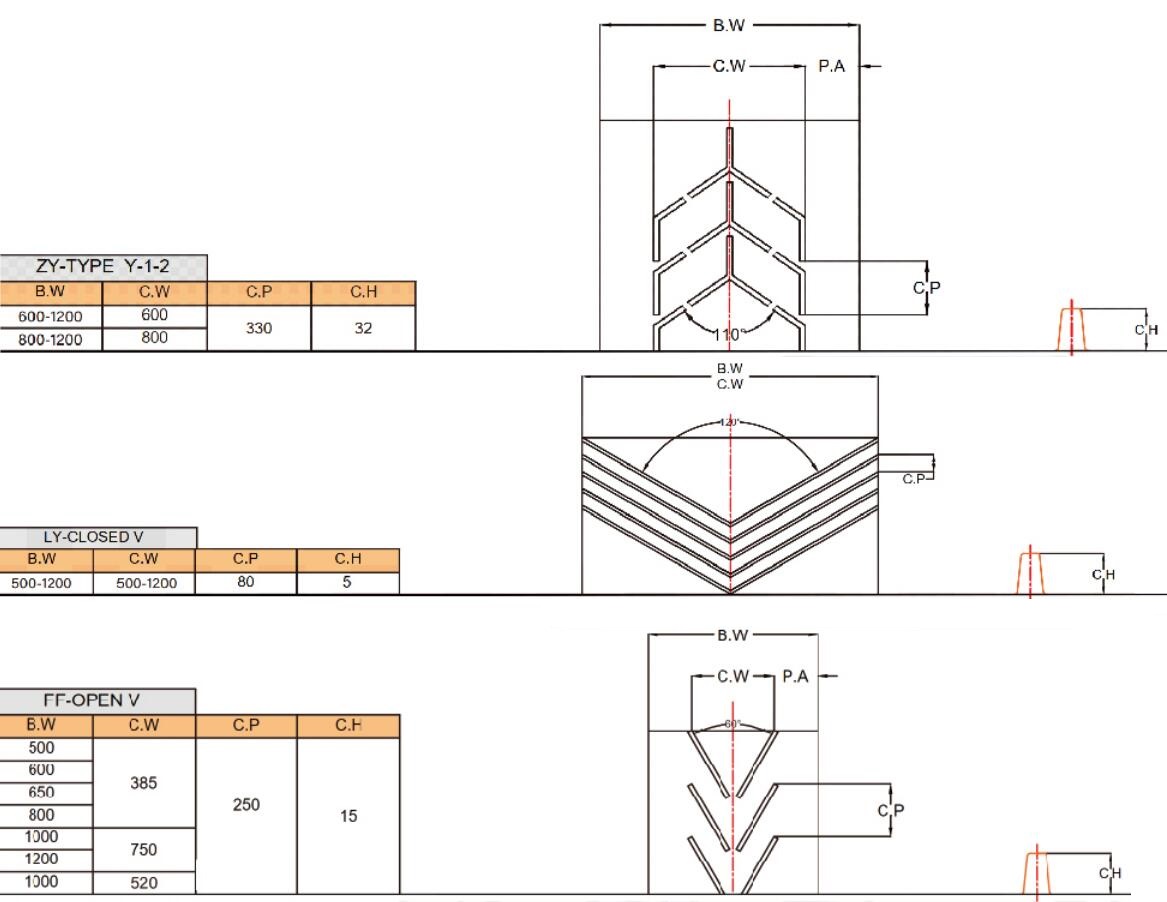

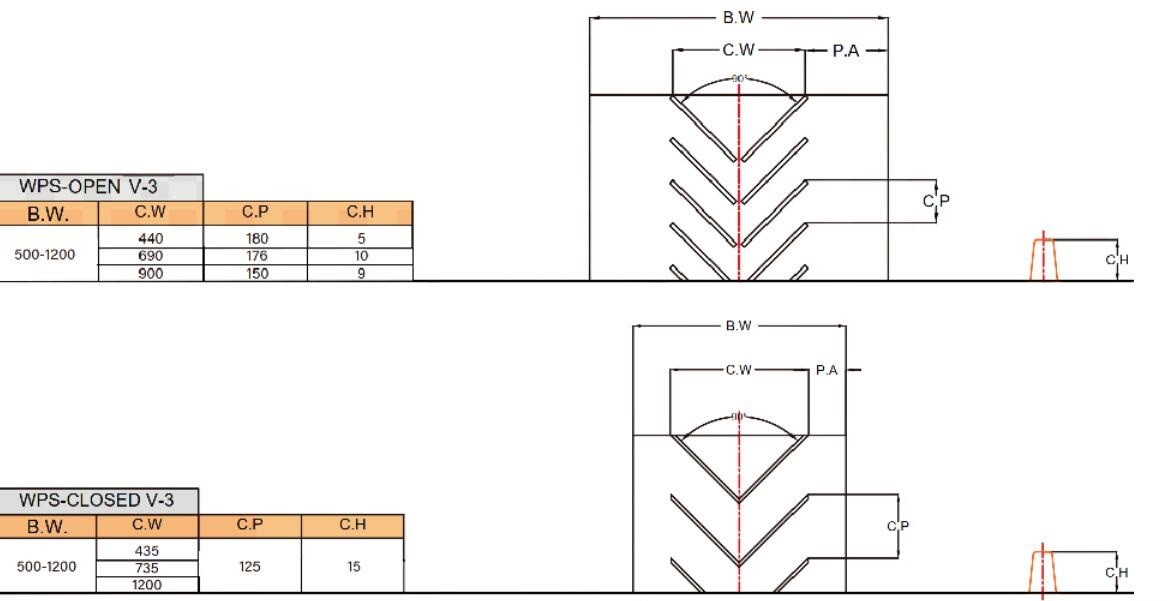

Pattern:
Open V,Close V,L type,H type,Multi-V Type.etc.
Width of Belt(BW):450mm-1200mm;
Height of Pattern (CH):5、10、15、17、25、32 (mm);
Pattern Pitch(CW):125、200、250、330、400、500(mm)
Note:Pattern can be designed according to the customersrequirement.
