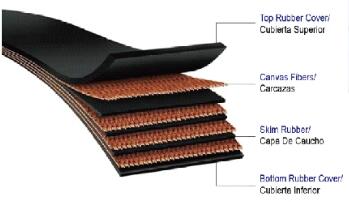

Multi-ply Fabric Conveyor Belt
Polyester (EP) conveyor belt:
High modulus, small elongation, good heat resistance andgood impact resistance, suitable for conveying materialsunder the conditions of medium and long distance, heavyload and high speed.
Nylon (NN) conveyor belt:
Good elasticity. high strength, ood impact resistance.good flexibility, good groove formed and small elongatiorSuitable for conveying materials under the conditions ofmedium and long distance,heavy load and high speed.
Cotton Canvas (CC) Conveyor belt:
A traditional convevor belt, suitable for conveying materialsunder the condition of medium distance and short distance.
Application:
Widely used in mining, harbor, metallurgy, constructionchemical, grain industry for materials handling.
High modulus, small elongation, good heat resistance andgood impact resistance, suitable for conveying materialsunder the conditions of medium and long distance, heavyload and high speed.
Nylon (NN) conveyor belt:
Good elasticity. high strength, ood impact resistance.good flexibility, good groove formed and small elongatiorSuitable for conveying materials under the conditions ofmedium and long distance,heavy load and high speed.
Cotton Canvas (CC) Conveyor belt:
A traditional convevor belt, suitable for conveying materialsunder the condition of medium distance and short distance.
Application:
Widely used in mining, harbor, metallurgy, constructionchemical, grain industry for materials handling.
| DIN code | Characterization | Permitted temp.Range in ℃ | Tensile Mpa ≥ | Elongation at broken % ≥ | Abrasion mm³ ≤ | ||||
| Min | Max | ||||||||
| W | Anti-Abrasive | -30 | +60 | 18 | 400 | 90 | |||
| X | Cut resistant for extreme mechanical stress | -30 | +60 | 25 | 450 | 120 | |||
| Y | For general materials handling | -30 | +60 | 20 | 400 | 150 | |||
| K | Flame-resistant and anti-static | -30 | +60 | 15/18/20 | 400 | 120/150 | |||
| V | Underground (self-extinguishing) | -5 | +100 | 15/18 | 400 | 150/200 | |||
| T | Transportation of hot material | -30 | +175 | 15 | 400 | 150 | |||
| G | Oil and grease resistant | -40 | +80 | 15 | 400 | 120/150 | |||
| Design Code | RMA Norm | Characterization | Tensile Strength in MPA(min) | Elongation at break%(min) | Abrasion in mm³(max) | Hardness in SHA | Basic Material | ||
| HS M24 | / | Extreme abrasion resistance,superior resistance to cutting&tearing | 24 | 450 | 120 | 60±5 | NR/SBR | ||
| HS R1 | RMA I | High abrasion resistance, superior resistance to cutting & tearing | 17 | 450 | 200 | 60±5 | NR/SBR | ||
| HS R2 | RMA II | Resistant to cuts and gouges,flexible at lower temperature | 14 | 400 | 250 | 60±5 | NR/SBR | ||
| H S | MHSA | Flame Retardant | 15 | 350 | 200 | 60±5 | CR | ||
| HS OR | / | Oil Resistant | 15 | 400 | 200 | 60±5 | NBR | ||
| HS C | / | Chemical Resistant | 15 | 400 | 250 | 60±5 | CR/IIR | ||
| HS E | / | Anti-Static | 15 | 400 | 200 | 60±5 | NR/SBR | ||
| HS T | / | Heat Resistant +100C ~+300°C | 15 | 400 | 200 | 60±5 | SBR/EPDM | ||
